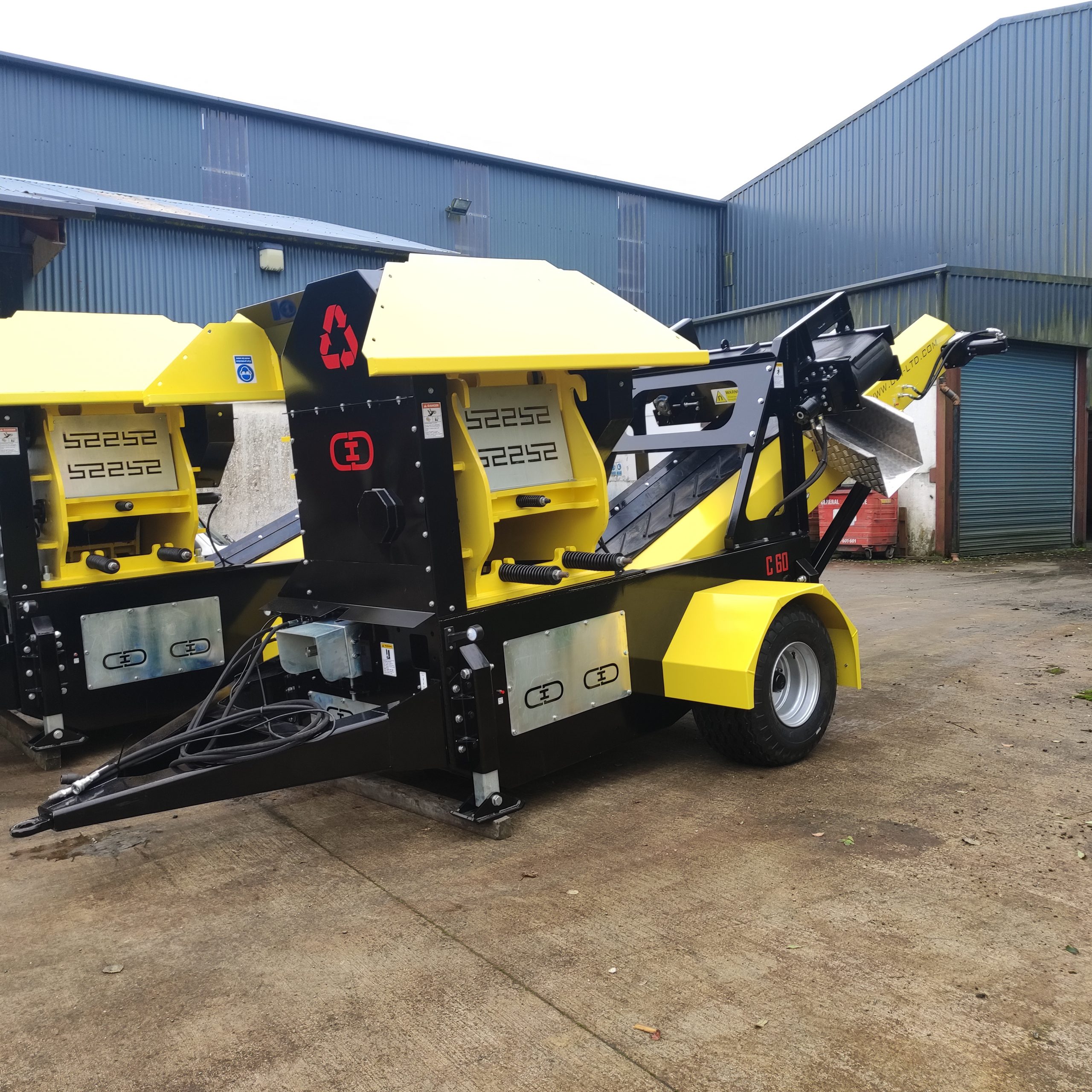

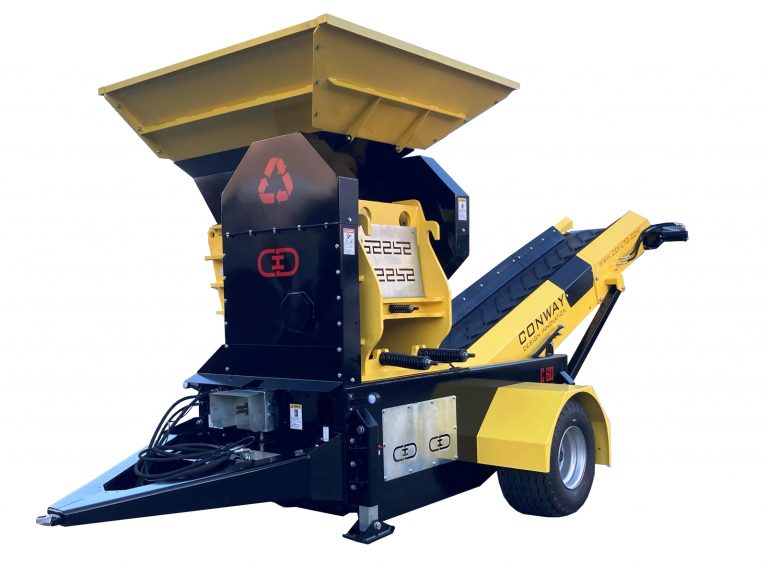

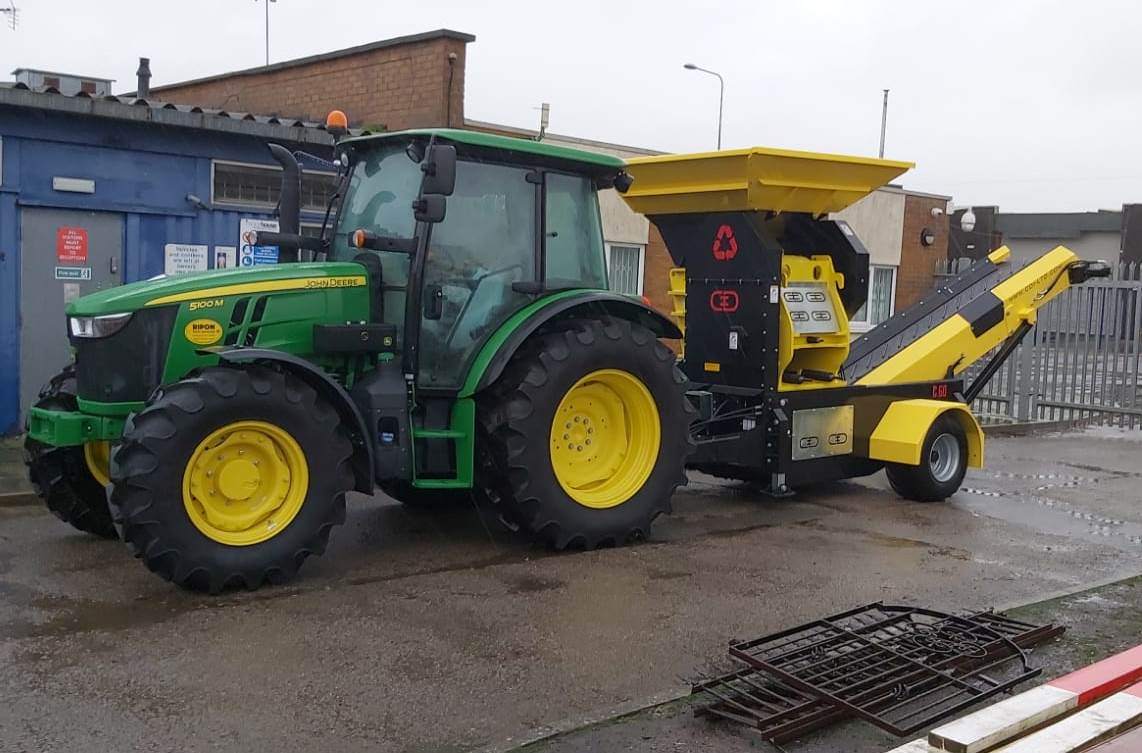

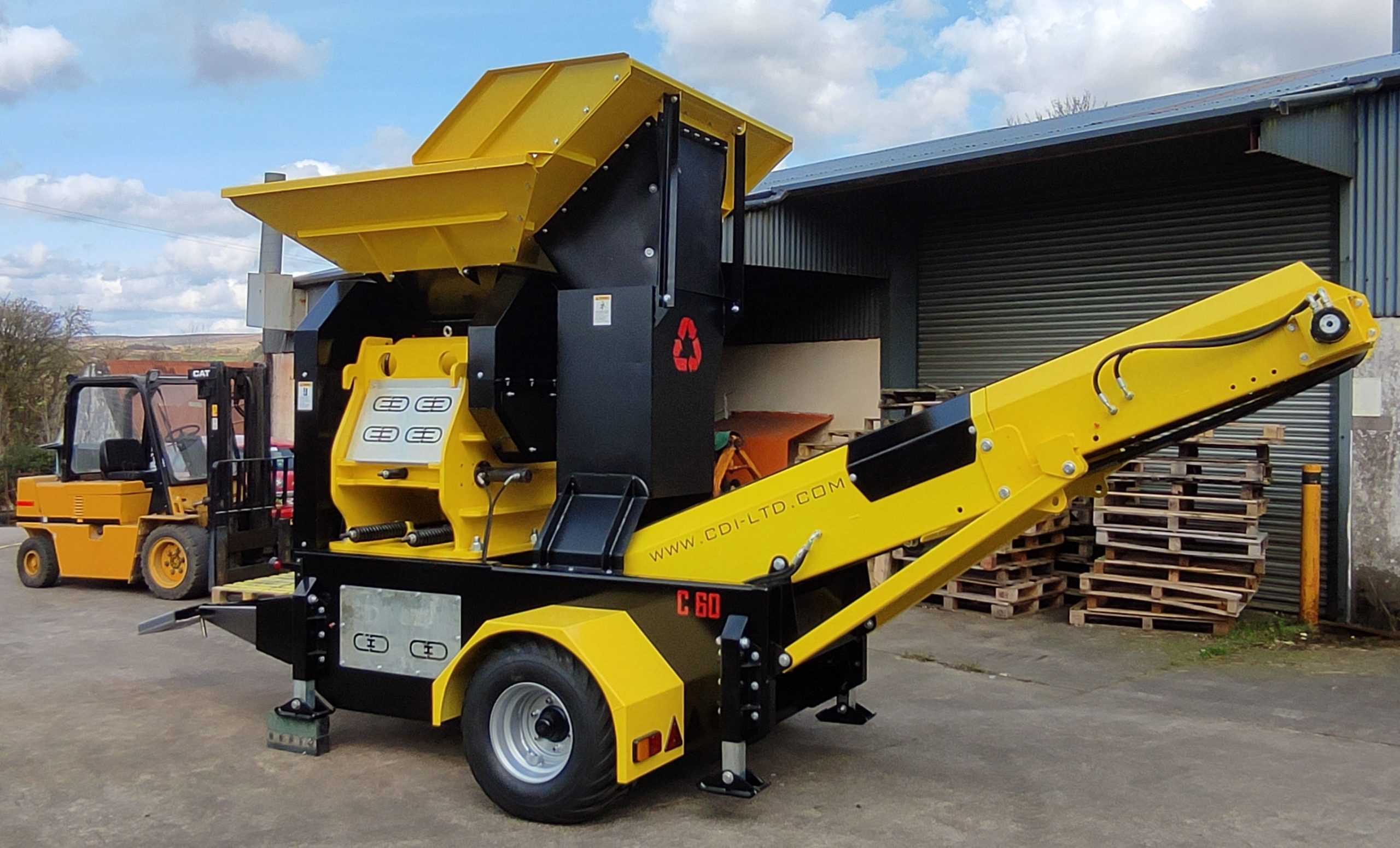

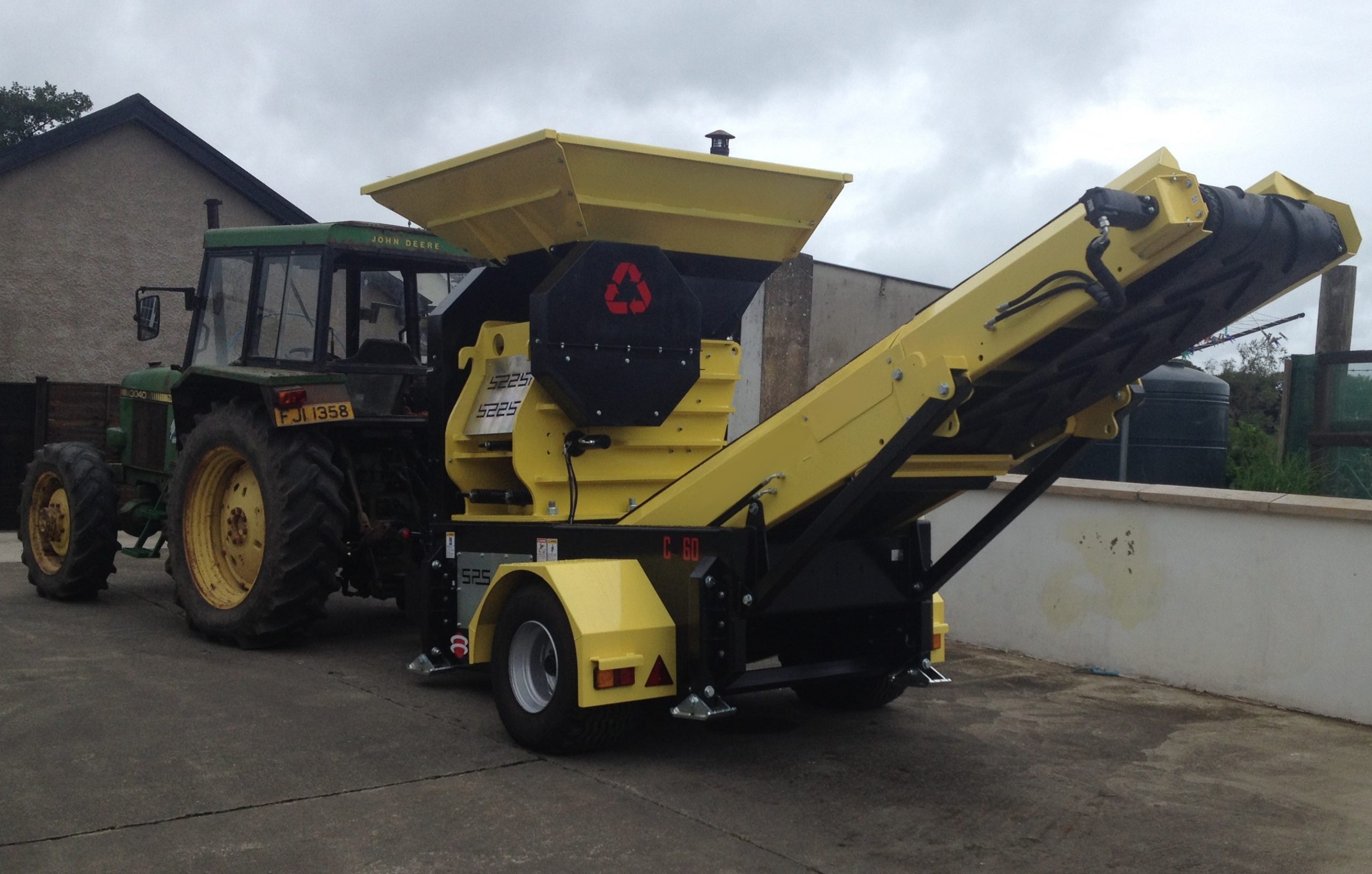

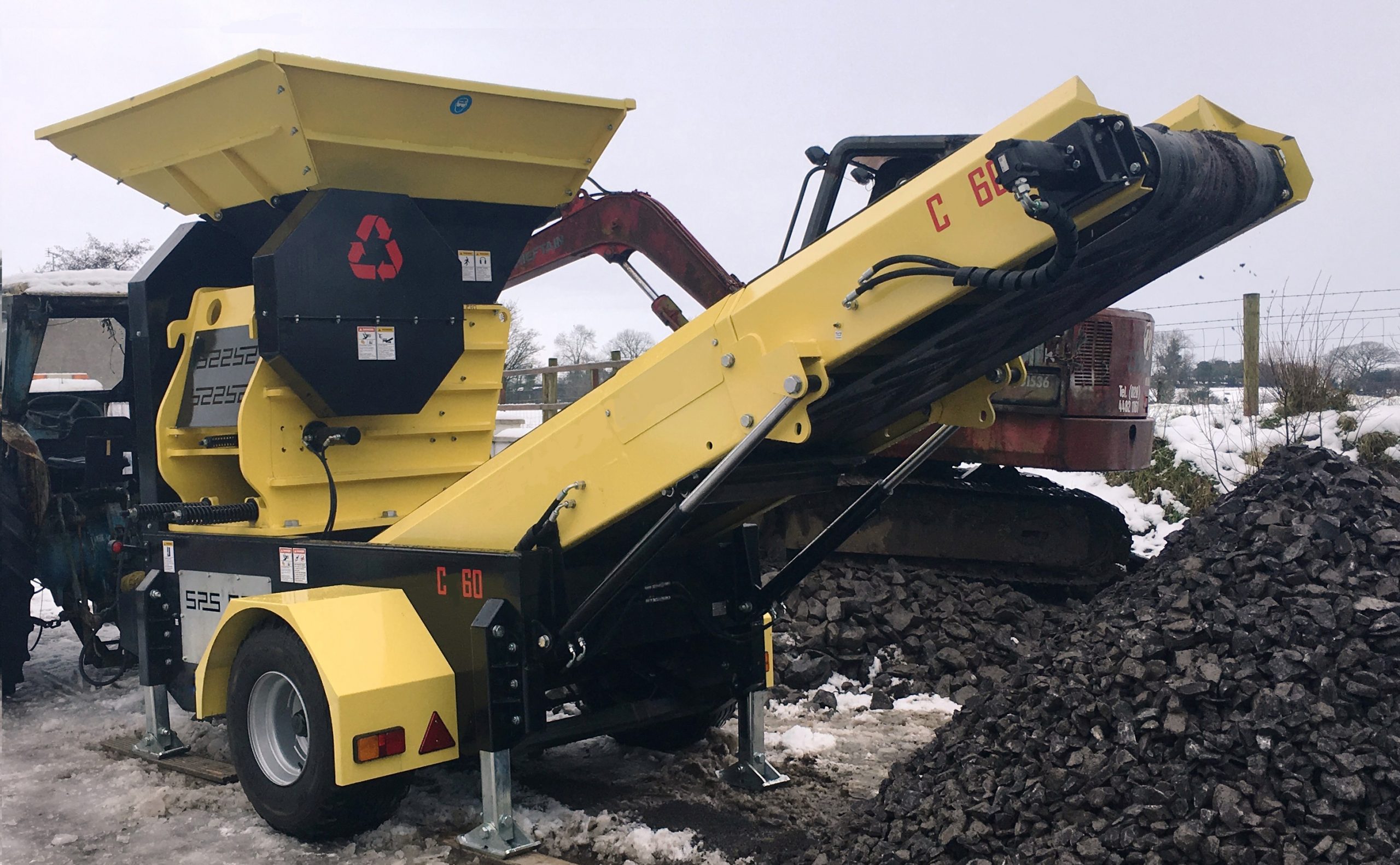

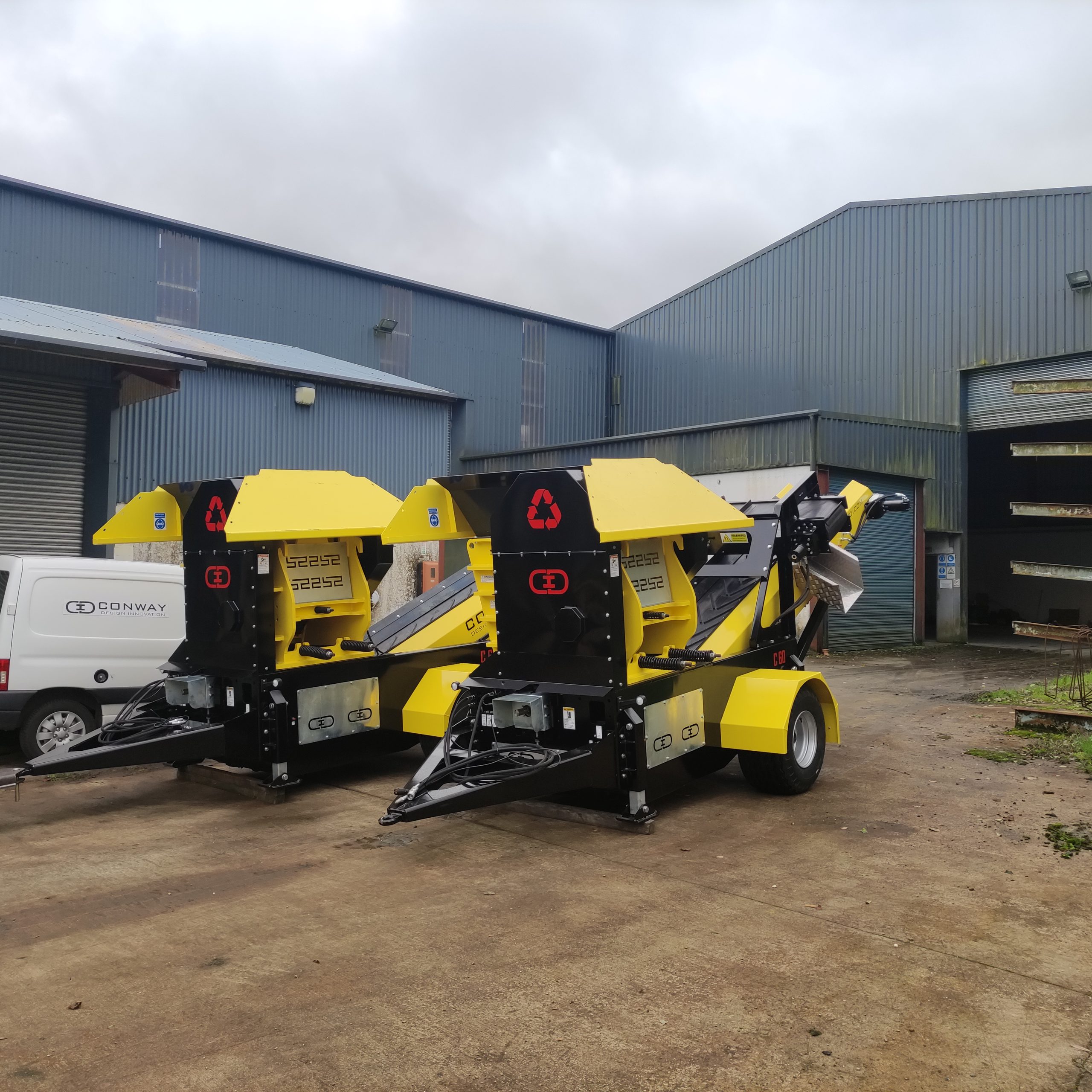

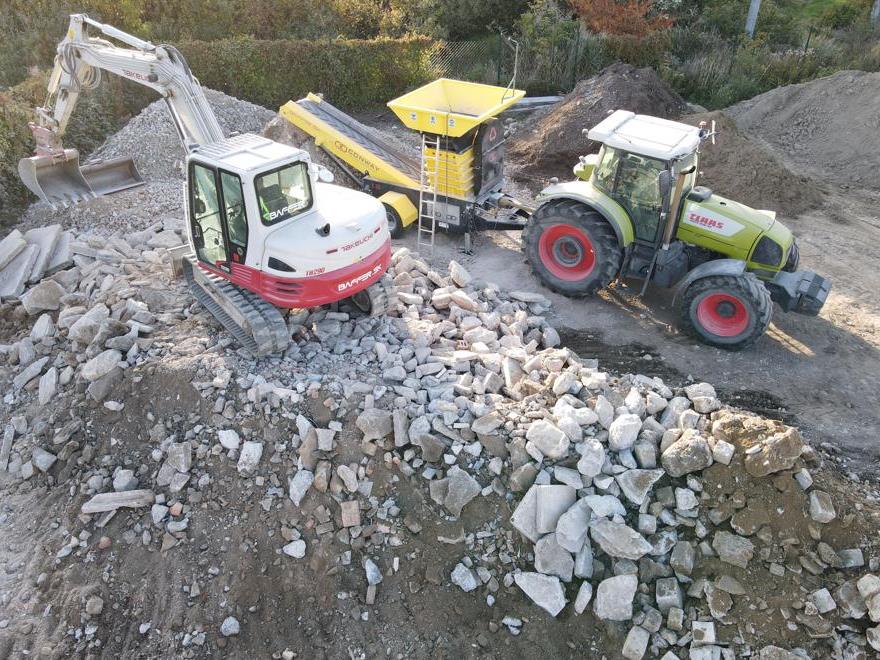

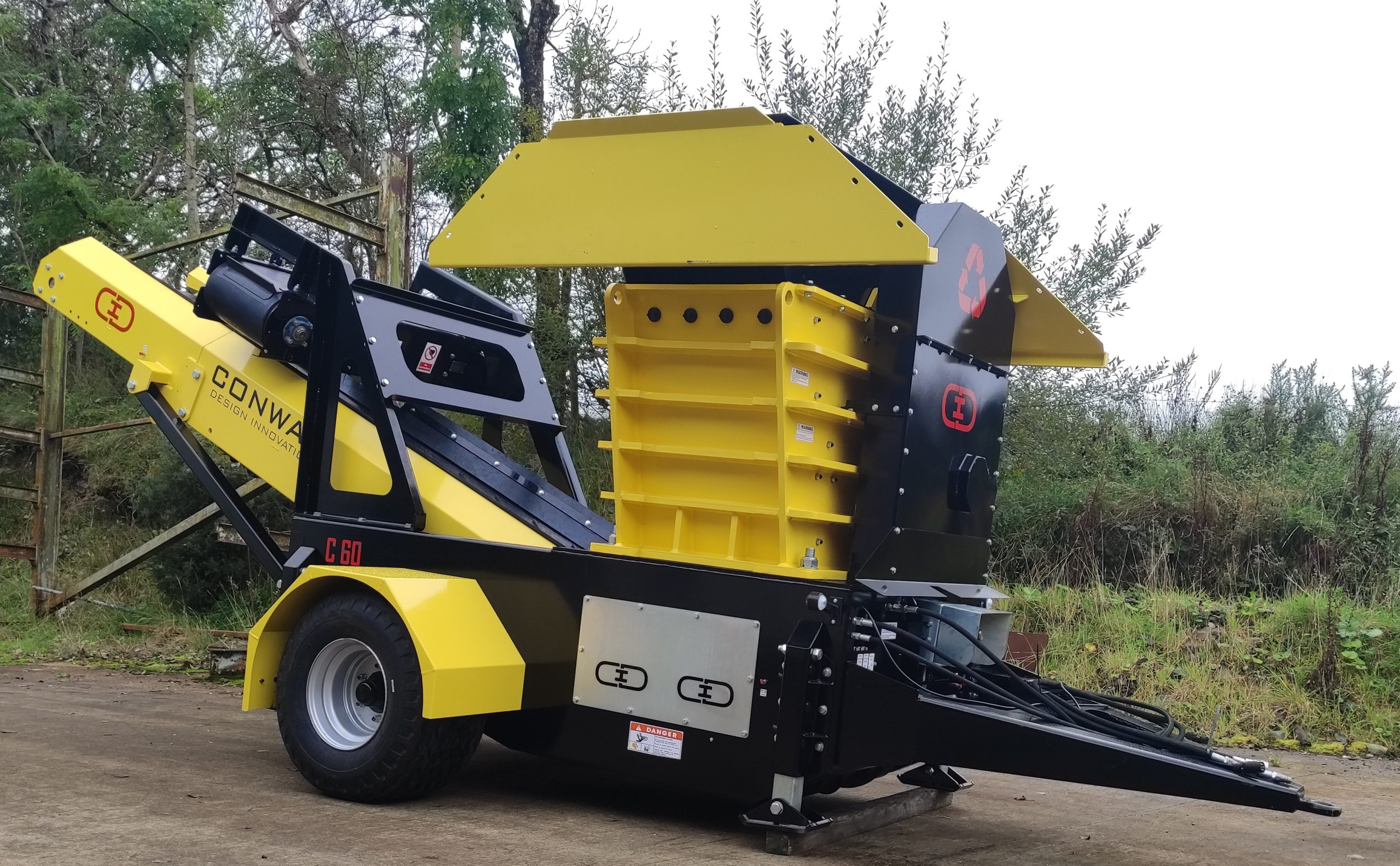

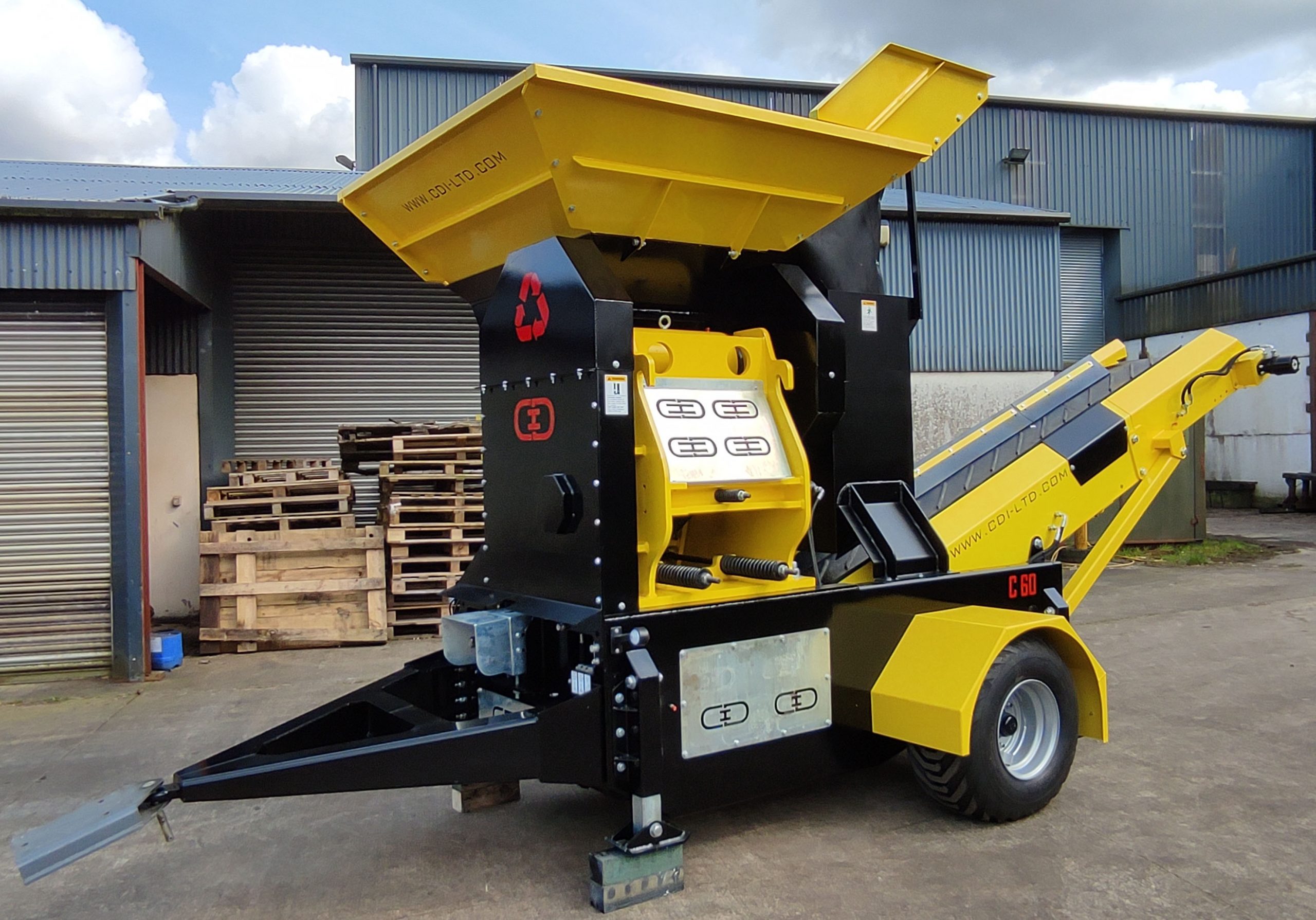

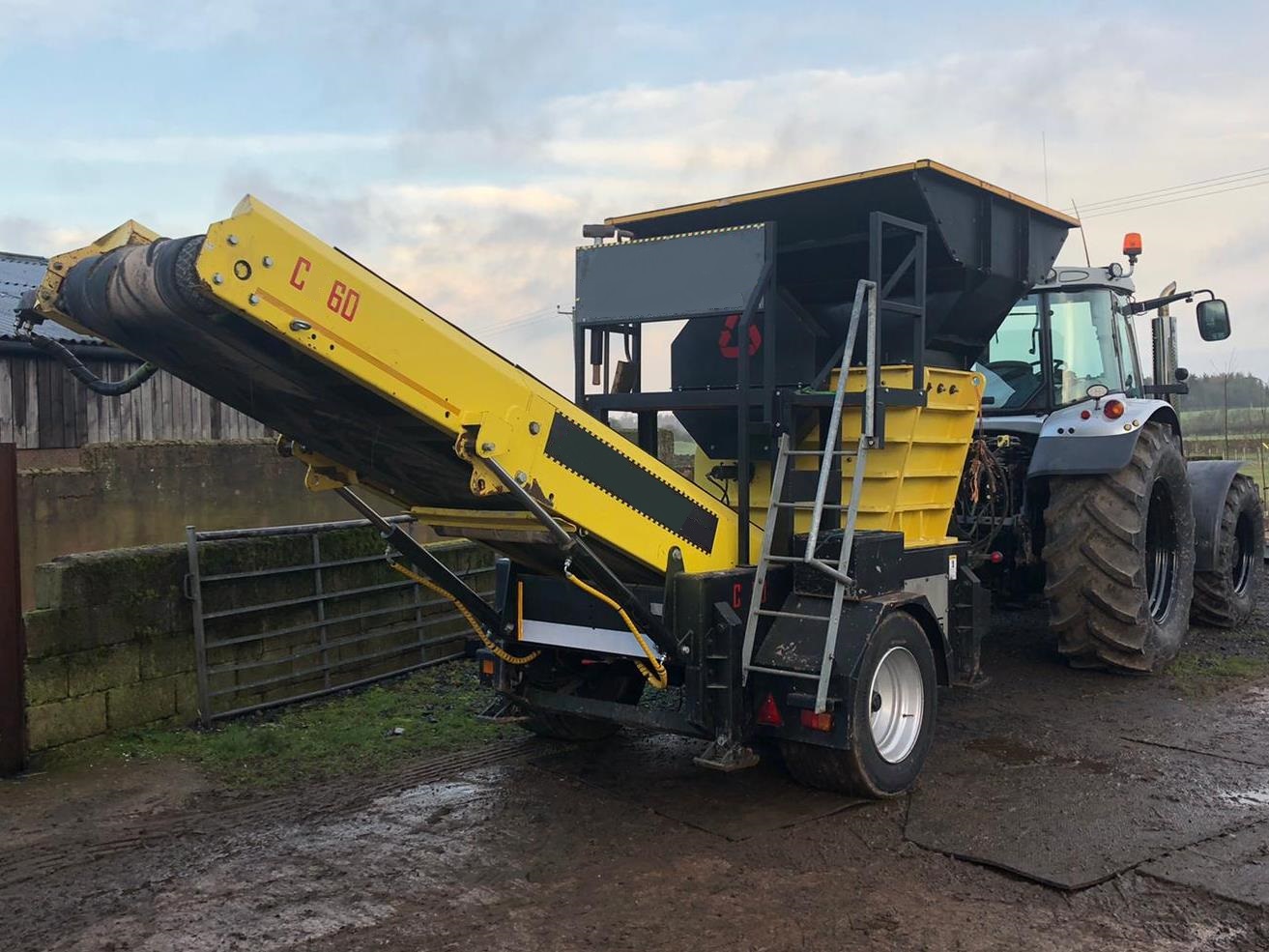

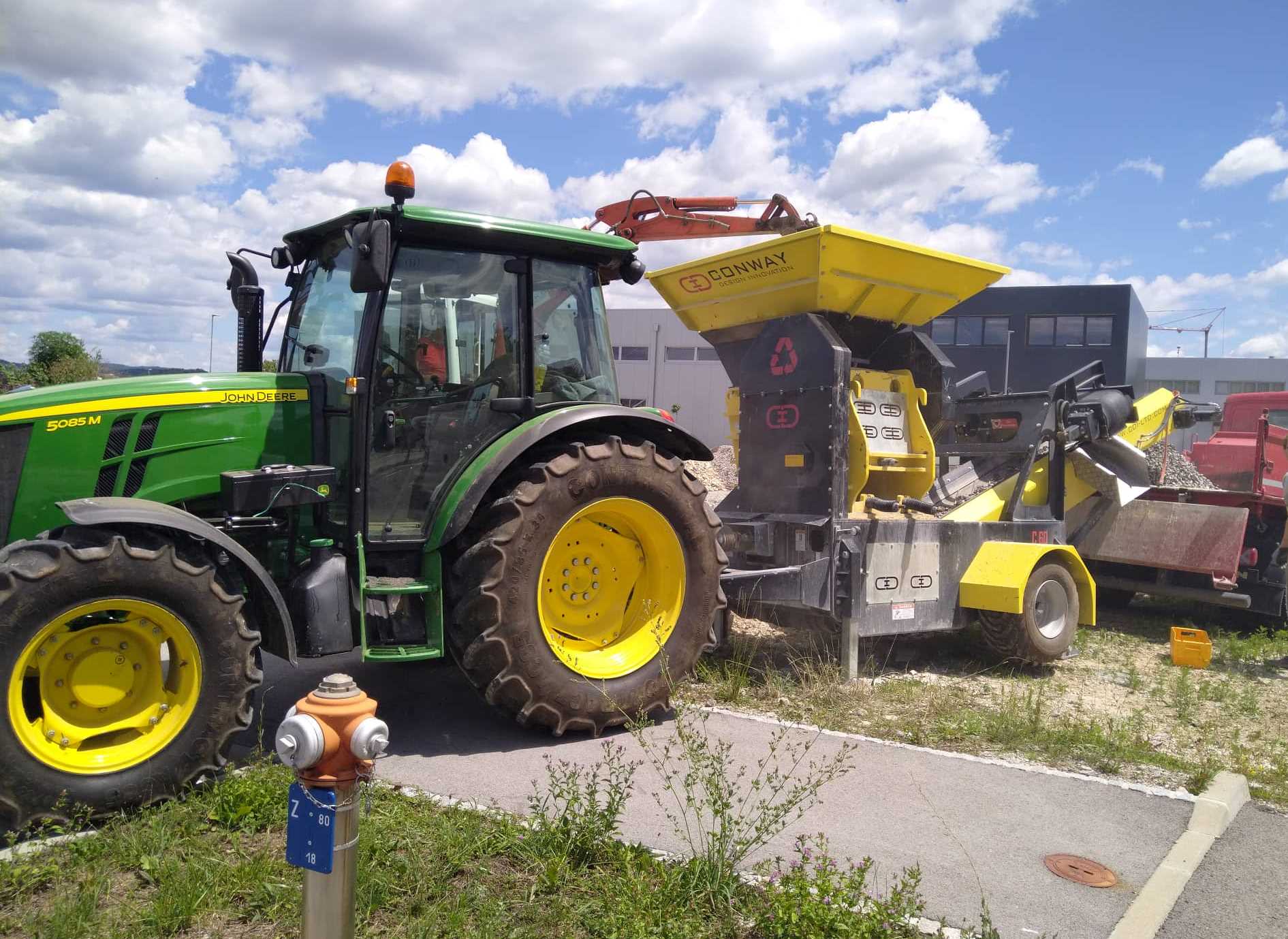

Introducing maximum efficiency and unrivalled mobility! The CDI Model C-60 has an on-board Heavy Duty Jaw Crusher with an Hydraulically adjustable CSS to suit required output size. Its on-board conveyor stockpiles crushed material and folds for transport. All components are driven direct from a standard 50hp to 90hp Tractor. It can be fed from a Conveyor or directly from a Digger. It is towed to and from site via the same Tractor that drives it.

• Machine Weight = Approximately 6Tonne depending on Options.

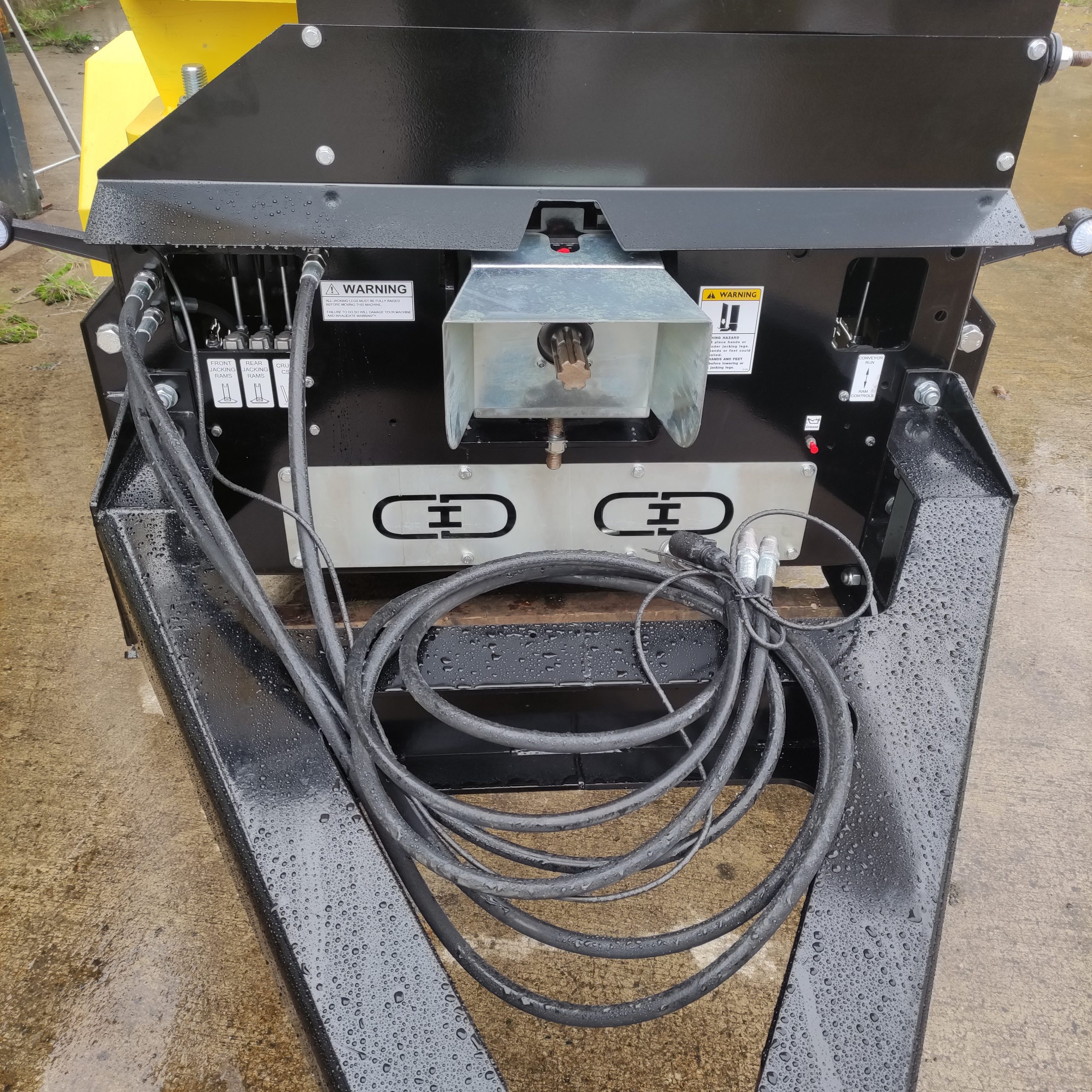

• Integrated Independent Hydraulic Controls for all hydraulic Components.
• Robust Heavy Duty Mobile chassis. (Super single braked Wheels)
• Single Toggle 640×400 Jaw Crusher (Driven direct from Tractor PTO)
• Feed Size up to 350mm
• Hydraulic adjustable CSS Setting. (Output size)

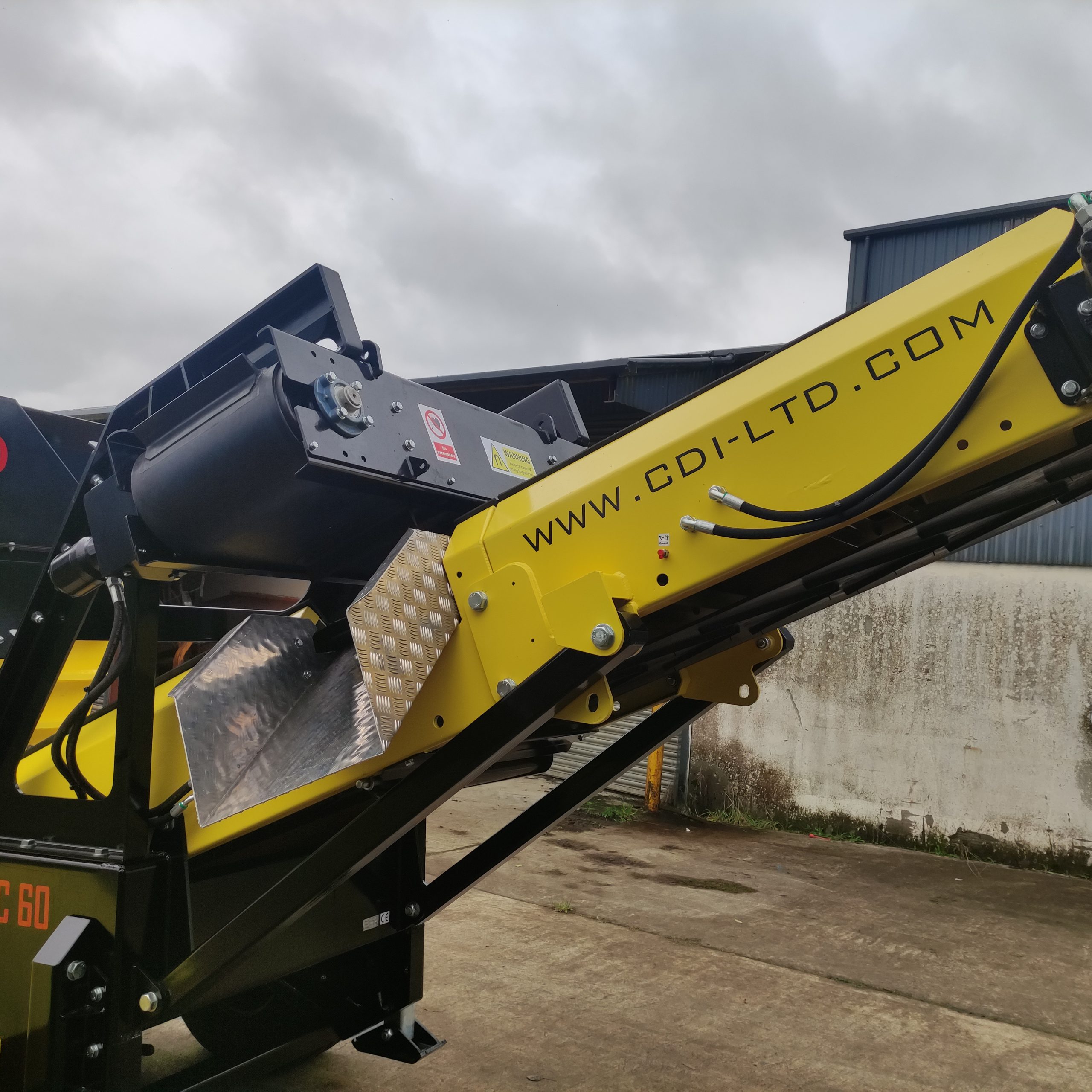

• 650mm Wide Chevron Discharge belt (Driven direct from Tractor hydraulics)
• Manual folding Discharge conveyor. (Discharge Height 2.33m)
• 4No Hydraulic Jacking Legs. (front 2 independent from rear 2)
• Hydraulic Brakes.

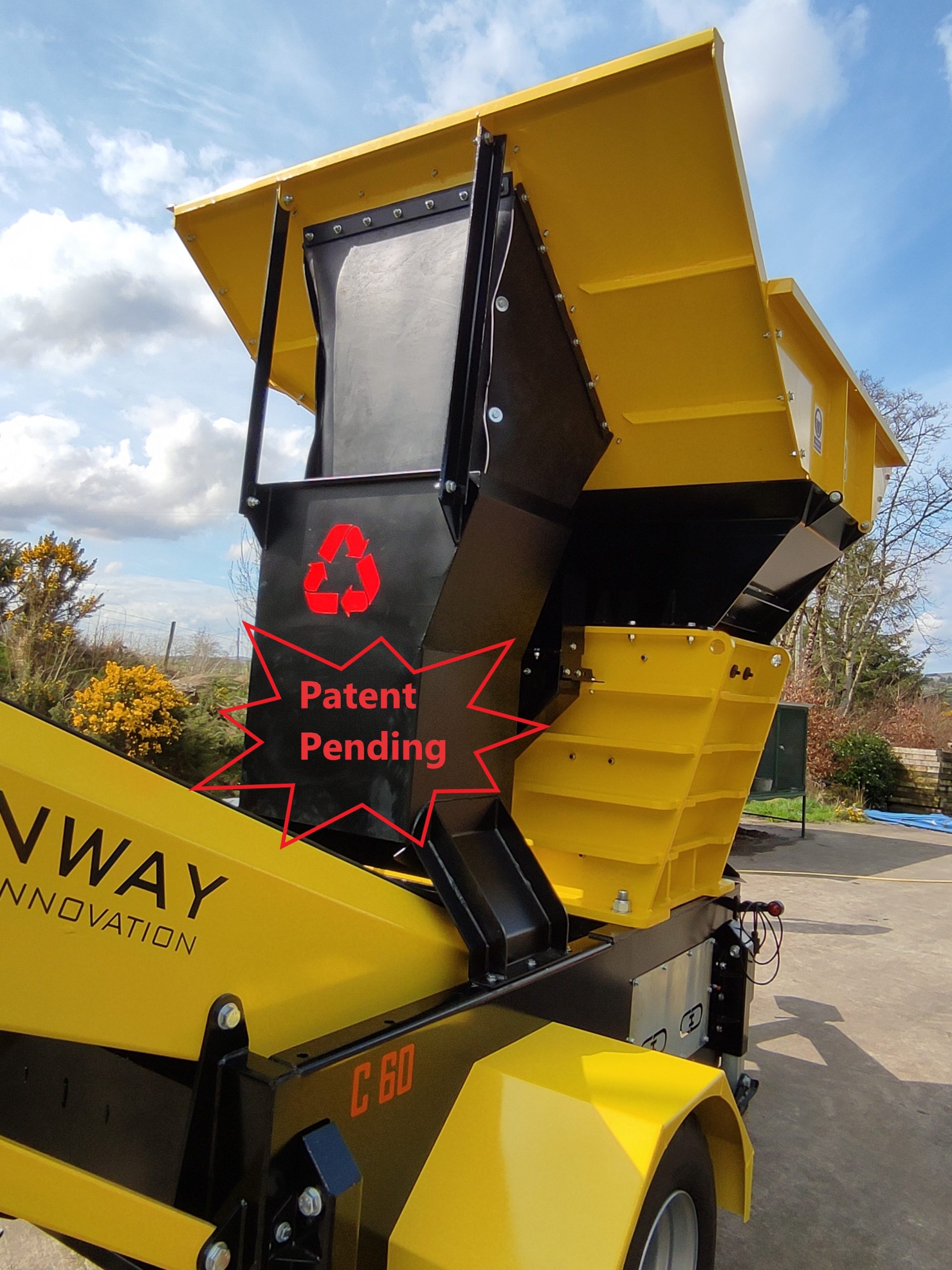

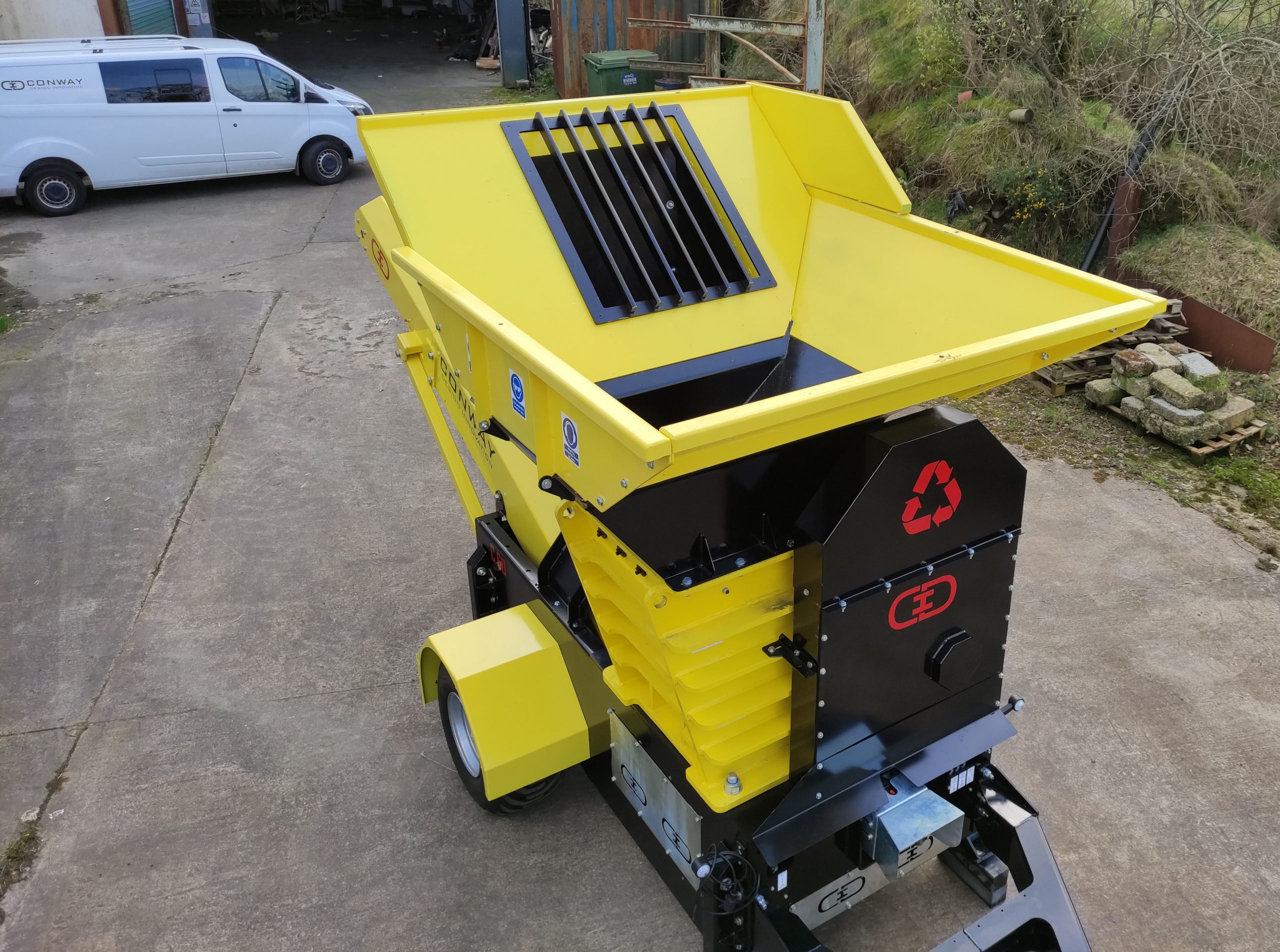

• Folding Hopper bin.(2m x 1.9m opening)
• Variable Feed height = 2.8m to 3m

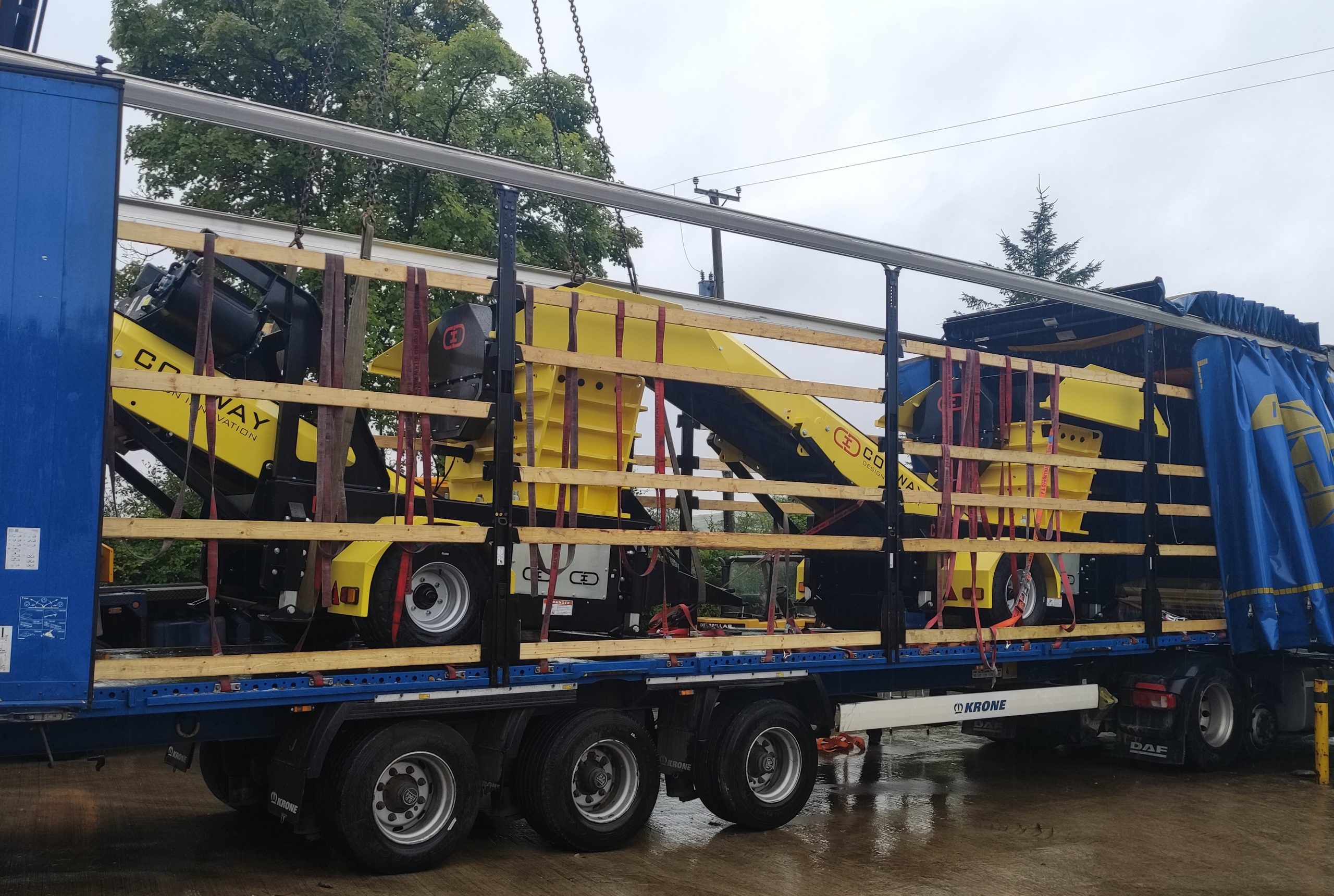

• Machine folds for Containerization. (3 machines per 12m high cube container)

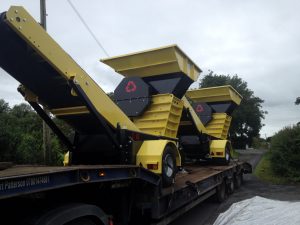

• Road Transport Dimensions = 5.4m Long x 2.9m High x 2.24m Wide.
• Containerized Dimensions = 4.2m Long x 2.52m High x 2.24m Wide.
• Operating Dimensions = 6.45m Long x 2.8m-3m High x 2.24m Wide.
