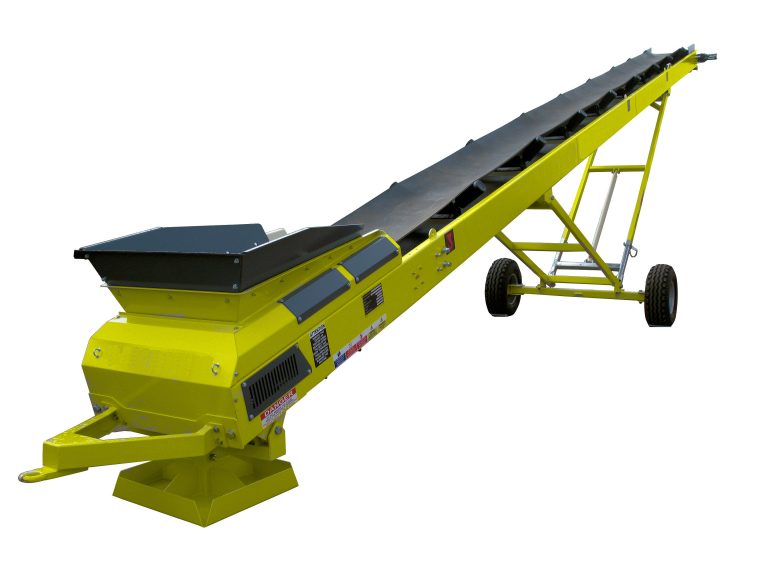

C15-C18 Stockpiler
The CDI C15 & C18 Stockpiling machines are built for the quarry with Heavy Robust construction. Designed to last in environments where continuous high Tonnages are essential. An integrated Drawbar and variable angle telescopics ensure optimum mobility to minimise set up time.
Standard Features:
- C15 Conveyor Length 15m (50FT)
- C18 Conveyor Length 18m (60FT)
- Belt Width 800mm.
- Detachable Drawbar eye.
- Bolt on Feed boot capacity 0.7 Tonne.
- Variable height Pivot stand. (Manual)
- Variable angle on conveyor telescopics to suit material type.
- Hinged conveyor top section for transport .
- Hydraulic or Direct Electric drive system at Head Drive Drum.
- Manual swivel axle with 6 stud wheels.
- Tensioned polyurethane scraper blade on drive drum.

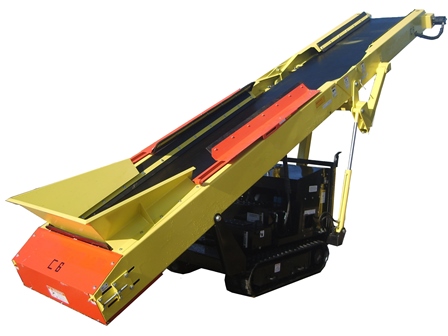

C6 Tracked Mobile Conveyor
Introducing maximum ‘’unrivalled’’ mobility. The CDI C6 is the smallest and most compact Tracked mounted conveyor on the market. It will reach previously inaccessible areas where materials need to be moved in tight working spaces. At under 2 Tonnes it can be transported to sites throughout most of Europe on a standard Car trailer without transport permits.
Standard Features:
- Most compact track mounted Conveyor on the market.
- Outputs up to 200TPH can be achieved.
- Set up time 5 Minutes.
- High track ground clearance for maximum mobility.
- Warning siren and Dog lead Remote control on Tracks for safety when moving machine.
- Bolt on Feed boot can be connected to numerous points on the conveyor to adjust feed in height.
- Conveyor Fully skirted for safety and to eliminate spillage.
- Hydraulic Variable angle on conveyor to suit material type.
- Hydraulic Hinged conveyor top section to optimise road transport length.
- Tensioned polturethene scraper blade on drive drum.
CT15 Tracked Mobile Conveyor
CDI offer the TRACKED CONVEYOR range of self-powered medium-duty track mounted conveyors with a range of options. The simple yet robust design provides an effective solution to fit many producers need for a medium capacity tracked stockpile. These conveyors offer real value for money and can be containerised for cost effective shipping worldwide . Now available in Both Diesel/Hydraulic and Dual Power Electric/Hydraulic for maximum efficiency and Minimum Running Costs.
Standard Features:
- C15 Conveyor Length 15m (50FT)
- Belt Width 800mm.
- Bolt on Feed boot capacity 0.8 Tonne.
- Hydraulic Variable inlet height Tail.
- Hydraulic Variable angle on conveyor telescopics to suit material type.
- Hinged conveyor top section for transport .
- Remote Control 400mm wide steel Tracks.
- Tensioned polyurethane scraper blade on drive drum.
CDI C27 Stockpiler - Conveyor
The CDI C27 is the largest wheel mounted Mobile stockpiler in our Range. This machine is built for the quarry with its Heavy Duty Lattice frame construction. It is designed to last in environments where continuous high Tonnages and large stockpile volumes are essential. Though the C27 is best suited for integration with large processing plants it still remains mobile with a King pin to facilitate coupling with a standard truck without the use of additional trailers.
Standard Features:
- Conveyor Length 27m (85FT)
- Belt Width 800mm.
- King pin (5th wheel) for truck coupling.
- Bolt on Feed boot capacity 1.5 Tonne.
- Variable height Pivot stand. (Manual)
- Variable angle on conveyor telescopics to suit material type.
- Hinged conveyor top & Bottom sections for transport .
- Hydraulic or Direct Electric drive system at Head Drive Drum.
- Manual swivel axle with twin 6 stud wheels.
- Tensioned polyurethene scraper blade on drive drum.
CDI Modular Picking Line Conveyors
Build Your Own Bespoke Heavy Duty Conveyor!
Ideal for Recycling and picking line Applications.
Standard Features:
- Up to 300 TPH Output
- Flat or Troughed Belts
- Standard modular Tail and Head drive sections for common parts.
- Large variety of center sections to get exact final required Length.
- Wide variety of belt widths available Plain or Chevron
- Electric drive systems designed to suit length and material
- Tensioned polyurethane primary scraper.
- Flatpacked for transport.
